(단위 : mm)
Catalog
No.
Pressure
Rating
Port
Type
Tube
Size
Orifice
Size
Dimensions
Block
Thickness
A
B
C
D
(HEX)
C1
D1
(HEX)
E
F
FT60ES04-06
60,000
psi
H6006
1/4"-3/8"
3.2
38
45
12.83
16
18.6
20.6
25
31.5
25
FT60ES04-09
H6009
1/4"-9/16"
4.8
47.5
67
12.83
16
21.66
30
28.5
48
38
FT60ES06-09
H6009
3/8"-9/16"
4.8
47.5
67
18.6
20.6
21.66
30
28.5
48
38
Elbow
Tee
(단위 : mm)
Catalog
No.
Pressure
Rating
Port
Type
Tube
Size
Orifice
Size
Dimensions
Block
Thickness
A
B
C
D
(HEX)
C1
D1
(HEX)
E
F
FT60TS06-04-06
60,000
psi
H6006
3/8"-1/4"-3/8"
3.2
40
50
12.83
16
18.6
20.6
27
25
25
FT60TS09-04-09
H6009
9/16"-1/4"-9/16"
4.8
54
67
12.83
16
21.66
30
35
33.25
38

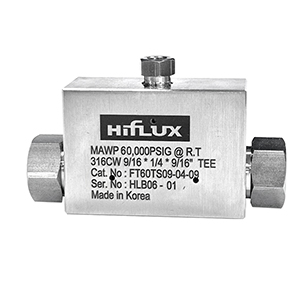

FT60TS09-06-09
H6009
9/16"-3/8"-9/16"
4.8
54
67
18.6
20.6
21.66
30
35
33.25
38
Elbow
Tee
